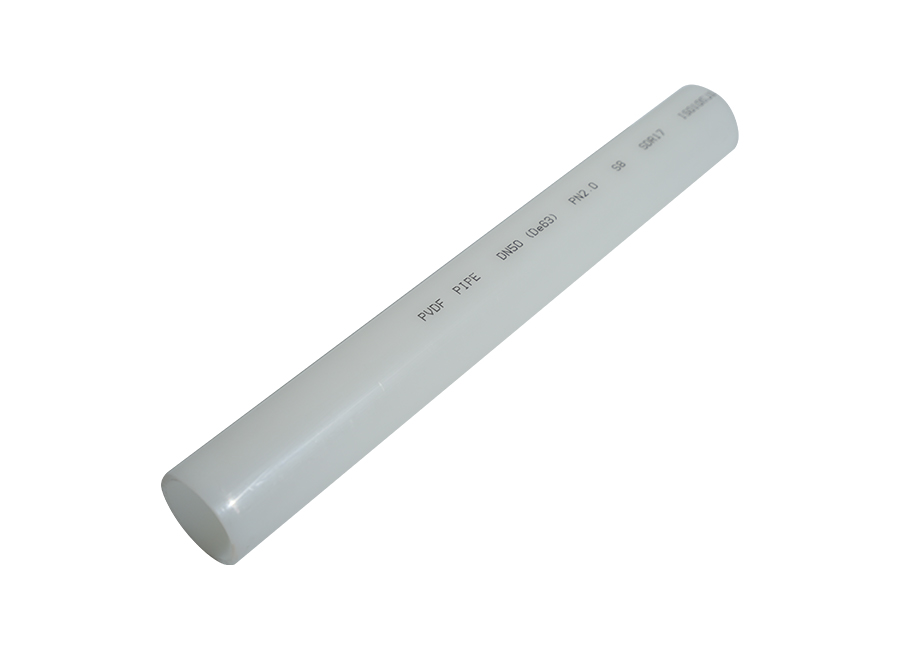

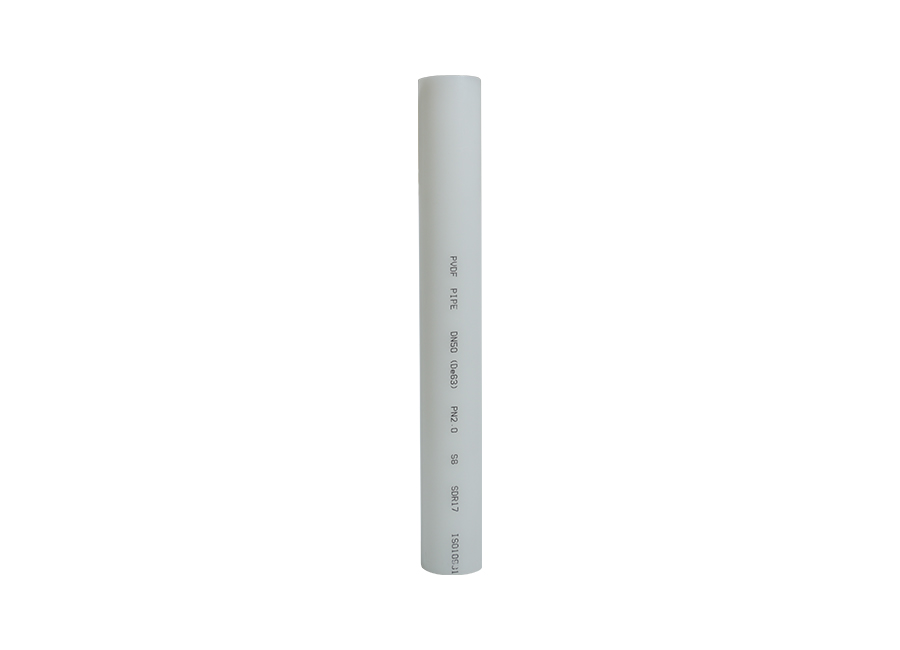

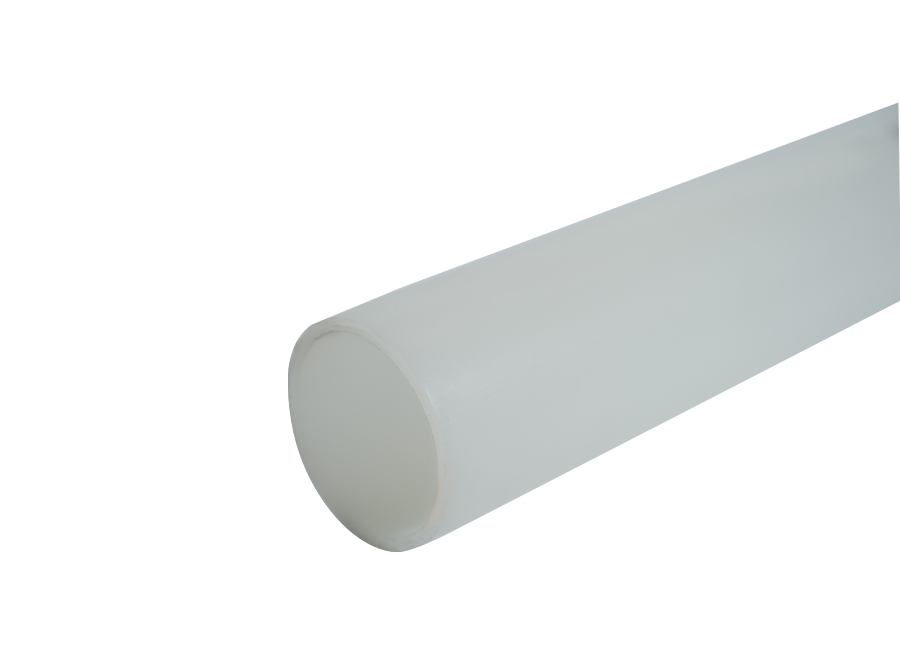

PVDF pipe

Material: PVDF
Pressure Ratings: 1.0MPa, 1.6MPa, 2.0MPa
Connection Methods: Spigot and Socket, Welding
Color: White
Production Standards: ISO 10931, DIN 8077/8078, EN 14577
Density: 1.17~1.79 g/cm³
Melting Point: 172°C
Long-term Use Environmental Temperature Range: -40 to 150°C
Heat Deflection Temperature: 112~145°C

1. PVDF pipe is made from virgin material, ensuring high purity and no impurities in the pipe, which effectively avoids the risk of corrosion or contamination inside the pipe, providing a safe and reliable passage for various fluid transmissions.
2. PVDF pipe can be connected using hot melt spigot and socket and butt fusion methods. Not only is the installation simple and fast but the connection is also well-sealed, effectively preventing fluid leakage and ensuring the integrity and safety of the pipeline system.
3. The pipe has a moderate density, which ensures sufficient strength while reducing weight and facilitating transportation and installation.
4. The long-term working environment temperature range of the tubing can reach -40~150°C. Whether in extremely cold or high-temperature environments, it can maintain its wonderful performance and adapt to various complex working conditions.
5. The crystallinity of the tubing is between 65% and 78%, ensuring its wonderful mechanical properties and chemical stability. This allows the pipe to maintain stable performance during long-term use and extends its service life.
